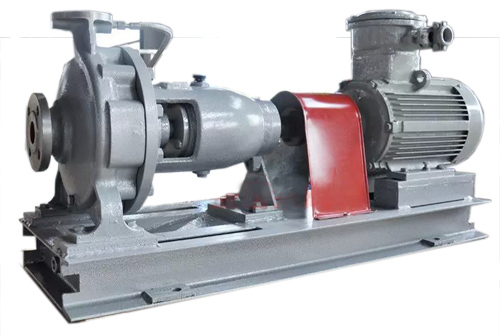

ZA型石油化工流程泵: 产品型号：; 产品产地：; 发布日期：2020-11-11; 浏览次数：次; 咨询电话：0563-5800155; 关键词：; 分享到 QQ空间微信新浪微博腾讯微博 62.9K; 下一个产品上一个产品

详细介绍

二、性能参数表：

泵型号	叶轮形式	流量	杨程	转速	效率	汽蚀余量	轴功率	电机
泵型号	叶轮形式	流量	杨程	转速	效率	汽蚀余量	轴功率	型号	功率
25-200	A	11.5	49	2950	42	1.6	3.6	YB132S₁-2	5.5
	B	10.5	42	2950	41	1.4	2.9	YB112M-2	4
	C	9	36	2950	39.5	1.2	2.2	YB100L-2	3
	D	7.5	28	2950	37.5	1.1	1.5	YB90L-2	2.2
	E	5.5	16	2950	35	1.1	0.7	YB90S-2	1.5
25-250	A	12	75	2950	40	2.4	7.8	YB160M₁-2	11
	B	10.5	65	2950	38	2.4	7.2	YB160M₁-2	11
	C	10	50	2950	33	2.2	4.2	YB132S₂-2	7.5
	D	9	30	2950	31	2.1	3.5	YB132S₁-2	5.5
25-315	A	18	130	2950	38	2.4	24.2	YB200L1-2	30
	B	17	115	2950	38	2.4	16.5	YB180M-2	22
	C	16	100	2950	33	2.1	15.2	YB160L-2	18.5
	D	15	90	2950	30	2.1	11	YB160M2-2	15
40-160	A	28	33	2950	62	3	4.1	YB132S1-2	7.5
	B	25.6	29	2950	61	2.5	3.3	YB132S1-2	5.5
	C	22	22	2950	58	1.5	2.3	YB12M-2	4
	D	20	16	2950	55	1.5	1.6	YB90L-2	2.2
40-200	A	29	53	2950	58	2.2	7.2	YB160M1-2	11
	B	26	47	2950	58	1.7	5.9	YB132S2-2	7.5
	C	22	39	2950	56	1.3	4.2	YB132S1-2	5.5
	D	18	30	2950	53	1.2	2.8	YB112M-2	4
40-250	A	32	78	2950	53	2.4	12.8	YB160L-2	18.5
	B	30	72	2950	52.5	2.2	11.2	YB160M2-2	15
	C	24	60	2950	50.5	1.7	7.8	YB160M1-2	11
	D	21	47	2950	48	1.7	5.6	YB132S2-2	7.5
40-315	A	42	115	2950	46	1.3	28.6	YB200L2-2	37
	B	40	107	2950	45	1.2	25.9	YB200L-2	30
	C	34	81	2950	42.5	1	17.6	YB180M-2	22
	D	29	61	2950	40.5	0.9	11.9	YB160M2-2	15
50-160	A	50	34	2950	71	2.4	6.5	YB160M1-2	11
	B	45	29	2950	70	1.8	5.1	YB132S2-2	7.5
	C	38	22	2950	68	1.5	3.3	YB132S1-2	5.5
	D	31	17	2950	65	1.5	3.2	YB100L-2	3
50-200	A	62	52	2950	68	2.5	12.9	YB160L-2	18.5
	B	56	46	2950	67	2.2	10.5	YB160M2-2	15
	C	49	37	2950	65	1.8	7.6	YB160M1-2	11
	D	43	28	2950	60	1.8	5.5	YB132S2-2	7.5
50-250	A	70	82	2950	65	2.5	24	YB180L1-2	30
	B	66	75	2950	64	2.2	21.1	YB180L1-2	30
	C	60	60	2950	62	2	15.8	YB180M-2	18.5
	D	50	45	2950	60	1.7	10.2	YB160M2-2	15
50-315	A	87	115	2950	56	2.5	48.7	YB250M-2	55
	B	80	100	2950	55	2	39.6	YB225M-2	45
	C	70	78	2950	54	1.6	27.5	YB200L2-2	37
	D	57	57	2950	50	1.4	17.7	YB180M-2	22
50-400	A	82	194	2950	48	2.2	90.3	YB315S-2	110
	B	78	175	2950	47	2	79.1	YB280M-2	90
	C	70	140	2950	46	1.8	58	YB280S-2	75
	D	60	102	2950	43	1.6	38.8	YB225M-2	45
50-450	A	135	250	2950	52	5.2	176	YB315L2-2	200
	B	125	220	2950	52	4.5	144	YB315L1-2	160
	C	115	186	2950	51	3.8	114	YB315M-2	132
	D	100	158	2950	50.5	3.2	85	YB315S-2	110
	E	95	130	2950	50	3	67	YB280M-2	90
80-160	A	94	32	2950	78	3	10.5	YB160M2-2	15
	B	85	28	2950	77	2.7	8.4	YB160M1-2	15
	C	76	23	2950	76	2.5	6.3	YB160M1-2	11
	D	66	17	2950	71	2.3	4.3	YB132S1-2	7.5
80-200	A	103	54	2950	76	3.2	19.9	YB200L1-2	30
	B	95	48	2950	75	3	16.6	YB180M-2	22
	C	84	38	2950	72	3	12.1	YB160M2-2	18.5
	D	70	31	2950	67	2.8	8.8	YB160M1-2	15
80-250	A	127	82	2950	74	4.2	38.3	YB225M-2	45
	B	120	76	2950	73	3.8	34	YB225M-2	45
	C	105	59	2950	72	3.5	23.4	YB200L1-2	30
	D	87	45	2950	66	3.5	16.2	YB180M-2	22
80-315	A	141	127	2950	69	4.3	70.7	YB280M-2	90
	B	135	121	2950	68	4	65.4	YB280S-2	75
	C	115	97	2950	66	3.2	46	YB250M-2	55
	D	90	74	2950	61	3	29.7	YB200L2-2	37
80-400	A	171	187	2950	61	4	142.8	YB315L-2	160
	B	159	170	2950	61	3.5	120.7	YB315L1-2	132
	C	136	130	2950	57	2.4	84.5	YB315S-2	110
	D	116	95	2950	51	2.9	58.8	YB280S-2	75
80-450	A	200	230	2950	59	5.2	212.2	YB355M2-2	250
	B	180	210	2950	58	4.3	177.4	YB315L1-2	200
	C	165	195	2950	57.5	3.8	152.3	YB355S1-2	185
	D	155	160	2950	56	3.5	120.6	YB315L1-2	160
	E	140	130	2950	55	4	90.1	YB315S-2	110
100-160	A	162	29	2950	81	4.3	15.8	YB180M-2	22
	B	150	24	2950	80	3.6	12.3	YB160M2-2	18.5
	C	130	17	2950	78	3	7.7	YB160M1-2	15
	D	110	12	2950	71	3	5.1	YB132S2-2	11
100-200	A	193	50	2950	81	3.1	32.4	YB225M-2	45
	B	180	44	2950	80	3	27	YB200L2-2	37
	C	155	35	2950	77	2.8	19.2	YB200L1-2	30
	D	135	26	2950	72	2.8	13.3	YB160L-2	18.5
100-250	A	230	79	2950	81	4.5	61.1	YB280S-2	75
	B	218	73	2950	80	4	54.2	YB280S-2	75
	C	190	58	2950	79	4	38	YB225M-2	55
	D	170	44	2950	78	4	26.1	YB200L2-2	37
100-315	A	250	126	2950	75	3.8	114.4	YB315M-2	132
	B	240	120	2950	75	3.6	104.6	YB315M-2	132
	C	203	97	2950	71	2.8	75.5	YB280M-2	90
	D	170	71	2950	66	2.5	49.8	YB280S-2	75
100-400	A	300	194	2950	71	4.5	223.2	YB355L1-2	250
	B	290	180	2950	71	5.3	200.2	YB355M2-2	220
	C	260	145	2950	69	4.9	148.8	YB315L-2	185
	D	224	105	2950	66	5.7	97	YB315S-2	132
100-450	A	328	258	2950	70	6.1	329.1		440
	B	310	242	2950	70	5.5	291.7		355
	C	260	200	2950	69	4.6	2.5.2	YB355M2-2	250
	D	200	150	2950	66	5.5	123.7	YB315L1-2	160
150-200	A	320	44	2950	83.5	6.3	46	YB250M-2	55
	B	300	39	2950	82	5.7	39	YB225M-2	45
	C	265	30	2950	77	4.3	28	YB200L2-2	37
	D	220	23	2950	73	4.2	19	YB200L1-2	30
150-250	A	390	74	2950	82	5.5	96	Y315S-2	110
	B	355	62	2950	80	5	75	Y280M-2	90
	C	325	46	2950	76	5	53	Y280S-2	75
150-315	A	442	125	2950	82.5	7	182	Y355M1-2	220
	B	430	120	2950	82	6.8	172	Y355M1-2	220
	C	372	94	2950	79	6	122	Y315L1-2	160
	D	310	68	2950	75	6	76.5	Y280M-2	90
150-400	A	520	205	2950	78.5	7	370	YB450M1-2	450
	B	498	190	2950	78	6.7	330	YB355L3-2	355
	C	453	151	2950	75	6.5	245	YB355L1-2	280
	D	400	113	2950	73	6	169	YB355S2-2	200
150-450	A	548	260	2950	75	8	517.1		630
	B	252	245	2950	76	7	466.9		560
	C	460	208	2950	73	6	356.8		400
	D	360	140	2950	70	5.2	196	YB355M1-2	200
200-250	A	610	72	2950	84.5	9.2	142	YB355S1-2	185
	B	580	65	2950	84	8.2	122	YB315L1-2	160
	C	520	47	2950	81	7.5	82.2	YB315S2-2	110
	D	470	32	2950	78	6.5	52.2	YB280S-2	75
200-315	A	710	112	2950	85.5	9.5	276	YB355L2-2	315
	B	680	114	2950	85	8.5	251	YB355L1-2	280
	C	600	87	2950	82	7.5	176	YB355S2-2	200
	D	480	65	2950	77	6.5	110	YB315M-2	132
200-400	A	850	203	2950	82	13.5	573	YB560M1-2	630
	B	830	190	2950	81	12	530	YB560M1-2	630
	C	750	145	2950	79	11	375	YB450M1-2	450
	D	670	106	2950	76	11	255	YB355L2-2	315
200-450	A	940	255	2950	80	13	573		900
	B	880	240	2950	80	12	530		800
	C	780	200	2950	78.5	9.1	377		630
	D	600	140	2950	75	10	256		335
25-200	A	5.8	12	1475	38	0.7	0.5	YB90S-4	1.1
	B	5.4	11	1475	37.5	0.6	0.43	YB90S-4	1.1
	C	4.6	8.5	1475	36.5	0.5	0.29	YB90S-4	1.1
	D	4	6.5	1475	35	0.5	0.2	YB90S-4	1.1
	E	3	4	1475	30	0.5	0.11	YB90S-4	1.1
25-250	A	8	17	1475	30	0.7	1.5	YB100L1-4	2.2
	B	7	16	1475	28	0.7	1.4	YB100L1-4	2.2
	C	7.5	11	1475	23	0.7	1.3	YB100L1-4	2.2
	D	6.5	6.5	1475	20	0.6	0.72	YB90S-4	1.1
25-315	A	10	31	1475	30	0.4	6	YB112M-4	4
	B	9	30	1475	26	0.4	2.7	YB112M-4	4
	C	8	25	1475	25	0.38	2.3	YB100L2-4	3
	D	7	22.5	1475	24	0.35	1.6	YB100L1-4	2.2
40-160	A	14	8.25	1475	59	0.8	0.5	YB80M-4	0.75
	B	12	7.5	1475	58	0.7	0.4	YB80M-4	0.75
	C	10	6	1475	56	0.6	0.3	YB80M-4	0.75
	D	8	4.5	1475	53	0.45	0.2	YB80M-4	0.75
40-200	A	14.5	13.2	1475	55	0.8	0.9	YB90L-4	1.5
	B	12.5	12	1475	53	0.65	0.8	YB90L-4	1.1
	C	11	9.5	1475	51	0.7	0.6	YB580M2-4	0.75
	D	9.5	7.8	1475	48	0.8	0.4	YB580M2-4	0.75
40-250	A	16	19.5	1475	49.5	0.75	1.7	YB100L2-4	3
	B	15	18	1475	49	0.65	1.5	YB100L1-4	2.2
	C	12.5	14	1475	46	0.6	1.1	YB90L-4	1.5
	D	10.5	11	1475	44	0.5	0.7	YB90S-4	1.1
40-315	A	21	29	1475	42	0.5	3.9	YB132S-4	5.5
	B	20	26.5	1475	40.5	0.5	3.6	YB132S-4	5.5
	C	17.5	20	1475	37	0.5	2.6	YB112M-4	4
	D	15	15	1475	35	0.5	1.8	YB100L2-4	3
50-160	A	25	8.5	1475	69	1	0.8	YB90S-4	1.1
	B	22	7.5	1475	66.5	1	0.7	YB90S-4	1.1
	C	19	5.5	1475	64	1	0.4	YB80M2-4	0.75
	D	15	4.5	1475	62	1	0.3	YB80M2-4	0.75
50-200	A	31	13	1475	65.5	0.75	1.7	YB100L1-4	2.2
	B	29	11.5	1475	65.5	0.6	1.4	YB100L1-4	2.2
	C	26	9	1475	62	0.5	1	YB90L-4	1.5
	D	22	7	1475	60	0.5	0.7	YB90S-4	1.1
50-250	A	35	20	1475	62.5	0.65	3.1	YB112M-4	4
	B	33	18.5	1475	62	0.6	2.7	YB112M-4	4
	C	30	15	1475	61	0.5	2	YB100L2-4	3
	D	26	11	1475	59	0.5	1.3	YB100L1-4	2.2
50-315	A	44	28	1475	53	0.5	6.3	YB160M-4	11
	B	40	24	1475	52.5	0.5	5	YB132M-4	7.5
	C	35	19	1475	52	0.5	3.5	YB132S-4	5.5
	D	30	14	1475	50	0.5	2.3	YB112M-4	4
50-400	A	41	48	1475	45	0.5	11.9	YB160L-4	15
	B	39	43	1475	44	0.5	10.4	YB160L-4	15
	C	35	34	1475	43	0.5	7.5	YB160M-4	11
	D	30	25	1475	42	0.55	4.9	YB132M-4	7.5
50-460	A	68	63	1475	49	1.5	23.8	YB200L-4	30
	B	62	55	1475	49	1.2	18.9	YB200L-4	30
	C	54	47.5	1475	48	1	14.5	YB180L-4	22
	D	50	40	1475	47	0.8	11.6	YB180M-4	18.5
	E	40	35	1475	46	0.6	8.3	YB180M-4	11
80-160	A	47	8.3	1475	76	0.75	1.4	YB100L1-4	2.2
	B	40	7.3	1475	74	0.6	1.1	YB90L-4	1.5
	C	34	6	1475	69	0.5	0.8	YB90S-4	1.1
	D	26	5	1475	65	0.5	0.5	YB80M2-4	0.75
80-200	A	52	13.5	1475	74	0.8	2.6	YB112M-4	4
	B	47	12	1475	74	0.6	2.1	YB100L2-4	3
	C	40	9.8	1475	71	0.6	1.5	YB100L1-4	2.2
	D	34	7.7	1475	68	0.6	1	YB100L1-4	2.2
80-250	A	64	20	1475	72	1.3	4.8	YB132M-4	7.5
	B	60	19	1475	70	1.2	4.4	YB132M-4	7.5
	C	52	14.5	1475	67	0.9	3.1	YB132S-4	5.5
	D	16	11	1475	64	0.9	2.2	YB132S-4	4
80-315	A	70	33	1475	66.5	1	9.5	YB160L-4	15
	B	66	30	1475	65	0.9	8.3	YB160M-4	11
	C	56	24	1475	62	0.7	5.9	YB160M-4	11
	D	45	18	1475	57	0.7	3.9	YB132M-4	7.5
80-400	A	85	46	1475	58	0.8	18.4	YB180L-4	22
	B	80	42	1475	57	0.7	16.1	YB180M-4	18.5
	C	65	33	1475	54	0.5	10.8	YB160L-4	15
	D	53	25	1475	50	0.6	7.2	YB160M-4	11
80-450	A	103	60	1475	57	1.4	29.5	YB225S-4	37
	B	98	57	1475	56.5	1.3	26.5	YB225S-4	37
	C	80	50	1475	56	1.3	19.4	YB200L-4	30
	D	70	33	1475	54	1.3	11.6	YB160L-4	15
100-160	A	82	7.2	1475	79.5	1	2	YB100L2-4	3
	B	70	6.2	1475	77	1.1	1.5	YB100L1-4	2.2
	C	55	5	1475	73	0.6	1	YB90L-4	1.5
	D	45	4	1475	65	0.5	0.8	YB90S-4	1.1
100-200	A	97	12.5	1475	79.5	1	4.2	YB132S-4	5.5
	B	85	11.3	1475	77	0.8	3.4	YB132S-4	5.5
	C	70	9.5	1475	73	0.8	2.5	YB100L2-4	3
	D	60	7	1475	70	0.5	1.6	YB100L1-4	2.2
100-250	A	115	20	1475	79.5	1	7.9	YB160M-4	11
	B	110	18	1475	79	0.9	6.8	YB160M-4	11
	C	100	14	1475	77.5	0.8	4.9	YB132M-4	7.5
	D	90	10	1475	76	1	3.2	YB132S-4	5.5
100-315	A	125	31	1475	73	0.9	14	YB180M-4	18.5
	B	119	29	1475	72.5	0.8	13	YB180M-4	18.5
	C	104	24	1475	71	0.7	9.6	YB160L-4	15
	D	86	17.5	1475	65	0.6	6.3	YB160M-4	11
100-400	A	150	48	1475	70	1.4	28	YB225S-4	37
	B	145	44	1475	69	1.3	25.2	YB200L-4	30
	C	130	36	1475	68	1.2	18.7	YB180L-4	22
	D	115	26	1475	65	1.3	12.5	YB180M-4	18.5
100-450	A	167	63	1475	68	1.7	42.1	YB250M-4	55
	B	153	60	1475	68	1.5	36.8	YB225M-4	45
	C	130	50	1475	66.5	1.6	26.6	YB225S-4	37
	D	110	34	1475	65	2	15.7	YB180L-4	22
100-500	A	180	75	1475	70	1.5	52.5	YB280S-4	75
	B	150	71	1475	68	1	42.6	YB250M-4	55
	C	130	56	1475	65	0.8	30.5	YB225S-4	37
	D	100	45	1475	60	0.6	20.4	YB200L-4	30
150-200	A	160	11	1475	82	1.6	5.8	YB132M-4	7.5
	B	142	10	1475	80	1.3	4.8	YB132S-4	5.5
	C	121	8	1475	75	1.3	3.5	YB132S-4	5.5
	D	100	6.3	1475	70	1	2.5	YB112M-4	4
50-250	A	195	18.5	1475	80.5	1.3	12.2	YB180M-4	18.5
	B	180	16	1475	78	1.2	10.1	YB160L-4	15
	C	160	11.5	1475	75	1.2	6.7	YB160M-4	11
150-315	A	220	32.5	1475	81	1.7	24	YB200L-4	30
	B	210	30	1475	80	1.56	21.4	YB200L-4	30
	C	180	24	1475	75	1.3	15.7	YB180L-4	22
	D	115	17	1475	70	1.2	7.6	YB160L-4	15
150-400	A	260	51	1475	77	1.8	47	YB250M-4	55
	B	250	48	1475	76	1.7	43	YB250M-4	55
	C	225	38	1475	75	1.5	31	YB225M-4	45
	D	200	28	1475	73	1.4	21	YB200L-4	30
150-450	A	275	63	1475	73	2	64.6	YB280M-4	90
	B	260	60	1475	73	1.8	58.2	YB280S-4	75
	C	220	54	1475	72	1.5	44.9	YB250M-4	55
	D	180	35	1475	69	1.5	86.1	YB200L-4	30
150-500	A	300	78	1475	74	2	86.1	YB315S-4	110
	B	280	73	1475	74	1.5	75.2	YB280M-4	90
	C	235	60	1475	72	1.2	53.3	YB180S-4	75
	D	200	45	1475	70	1	35	YB225M-4	45
150-560	A	340	104	1475	74.5	2.5	129.2	YB315L1-4	160
	B	300	100		72	2	113.4	YB315M-4	132
	C	260	80		71	2.5	79.7	YB315S-4	110
	D	220	60		67	2.1	53.6	YB280S-4	75
150-630	A	360	115		63	2.3	179.9	YB355m1-4	220
	B	340	105		63	2	154.3	YB355S1-4	185
	C	300	80		56.5	1.8	115.6	YB315M1-4	132
	D	260	50		50	2.5	70.8	YB280M-4	90
200-250	A	305	17.5		83.5	2.56	17.4	YB180L-4	22
	B	290	16		83	2	15.2	YB180M-4	18.5
	C	260	12		81	1.6	10.4	YB160L-4	15
	D	240	8		79	15	6.6	YB160M-4	11
200-315	A	350	30		84.5	2	32.8	YB225M-4	45
	B	340	29		83	2	32.4	YB225M-4	45
	C	300	22		80	1.7	22.5	YB225S-4	37
	D	250	15		77	1.3	13.3	YB180L-4	22
200-400	A	426	50		81	3.3	71.6	YB280M-4	90
	B	410	47		80	3	65.6	YB280S-4	75
	C	370	36.5		79	2.3	47.2	YB250M-4	55
	D	332	27		75	2.3	32.5	YB225M-4	45
200-450	A	460	65		78	3	1.4.4	YB315M-4	132
	B	440	61		78	2.8	93.7	YB315S-4	110
	C	360	52		76	2.2	67.1	YB280M-4	90
	D	300	35		72	2.3	39.7	YB280S-4	55
200-500	A	500	84		81	2.8	141.2	YB315L1-4	160
	B	470	78		81	2.5	123.2	YB315L1-4	160
	C	400	64		78	2	89.3	YB315S-4	110
	D	300	52		72	1.8	59	YB280S-4	75
200-560	A	545	105		79.5	3	195.9	YB355M1-4	220
	B	500	100		78	2.4	174.5	YB315L2-4	200
	C	440	80		76	2	126.1	YB315L1-4	160
	D	300	67		72	1.7	76	YB280M-4	90
200-630	A	580	132		77.5	3.3	268.9	YB355L1-4	315
	B	550	125		77	2.3	243.1	YB355L1-4	280
	C	480	100		73	2.3	179	YB315L2-4	200
	D	370	76		70	2.3	109.4	YB315M-4	132
250-315	A	545	27		86.5	2.9	46.3	YB315M-4	55
	B	528	25		85	2.7	42.3	YB250M-4	55
	C	480	19		82	2.3	30.3	YB250M-4	45
	D	434	13		77	2	20	YB225M-4	30
250-400	A	600	49		83.5	3.2	105.4	YB315M-4	132
	B	630	46		83	3	95	YB315S-4	110
	C	565	36		82	2.3	68	YB280M-4	90
	D	500	24		78	2	42	YB250M-4	55
250-500	A	800	86		83	5	217.8	YB355M2-4	250
	B	750	78		82	4.5	194.2	YB355M1-4	220
	C	680	60		80	4	138.8	YB315L1-4	160
	D	558	45		76	4.2	89.9	YB315S-4	110
250-560	A	860	1.6		82	4.1	302.6		355
	B	830	98		82	4	270	YB355L2-4	315
	C	750	78		80	3.4	199.1	YB355M1-4	220
	D	600	62		76	2.6	133.2	YB315L1-4	160
250-630	A	850	128		80.5	4.5	367.9		450
	B	815	120		80.5	4	330.7		400
	C	700	97		79	2.7	234	YB315L1-4	280
	D	550	75		76	1.5	147.8	YB315L1-4	185
300-400	A	1050	48		87	5.7	158	YB355S1-4	185
	B	1010	45		86	5.1	144	YB355L-4	160
	C	900	34		83	3.9	100	YB315M-4	132
	D	780	26		78	4.5	71	YB280M-4	90
300-500	A	1230	78		88	4.7	296.8		355
	B	1100	75		87	4	261.6	YB355L2-4	315
	C	1000	57		86	3.4	180.4	YB315L2-4	200
	D	850	43		80	3.8	124.4	YB315L1-4	160
300-560	A	1350	104		87	5.1	439.3		500
	B	1270	98		87	4.5	389.4		450
	C	1100	80		84	3.5	285.2	YB355L2-4	315
	D	950	57		80	3.2	184.3	YB355M1-4	220
400-500	A	1900	74		88	6.2	439.9		500
	B	1800	70		88	5.8	389.8		450
	C	1600	50		85	5	256.2	YB355L1-4	280
	D	1300	38		80	4.2	168.1	YB355S1-4	185
400-560	A	2050	98		88	7.5	621.5		710
	B	1900	92		87	6	546.9		630
	C	1700	75		86	4.2	403.6		450
	D	1300	58		81	3.1	253.4	YB355L1-4	280
400-630	A	2400	125		88	8.6	928		1120
	B	2200	120		87.5	6.6	821.3		900
	C	2000	95		86	5	601.4		7100
	D	1600	70		80	5.5	381.1		450
400-720	A	2750	168		88	11.3	1429.2		1600
	B	2500	160		87	9.5	1251.6		1400
	C	2300	130		85.5	8.3	952		1120
	D	2100	105		82	10	732		800
